811658501 Westinghouse fridge freezer facia display display control housing assembly assy FITS ALL WSE6100

FREE SHIPPING ON ALL ORDERS!

For sale is this Westinghouse digital display control housing assembly, which fits side by side fridges with model numbers starting WSE6100 - and is compatible with Electrolux, Simpson and Kelvinator - see full list below!

Description

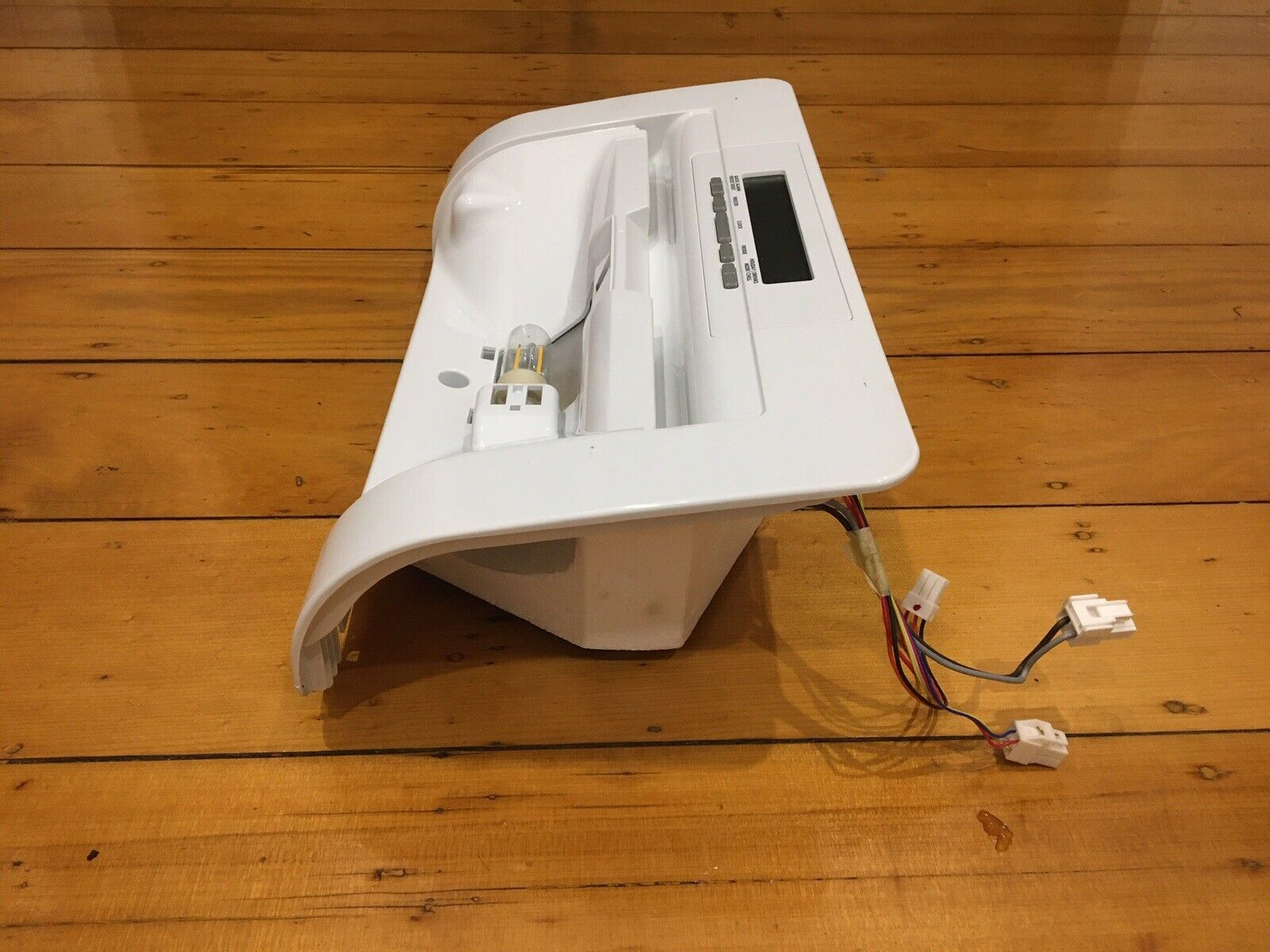

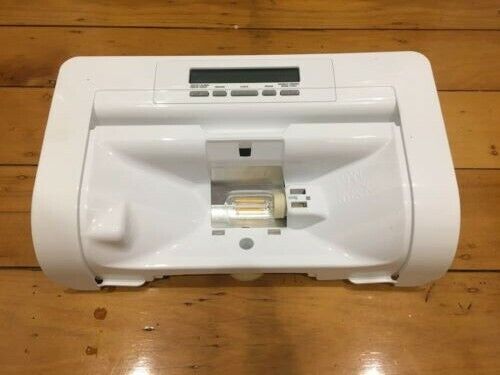

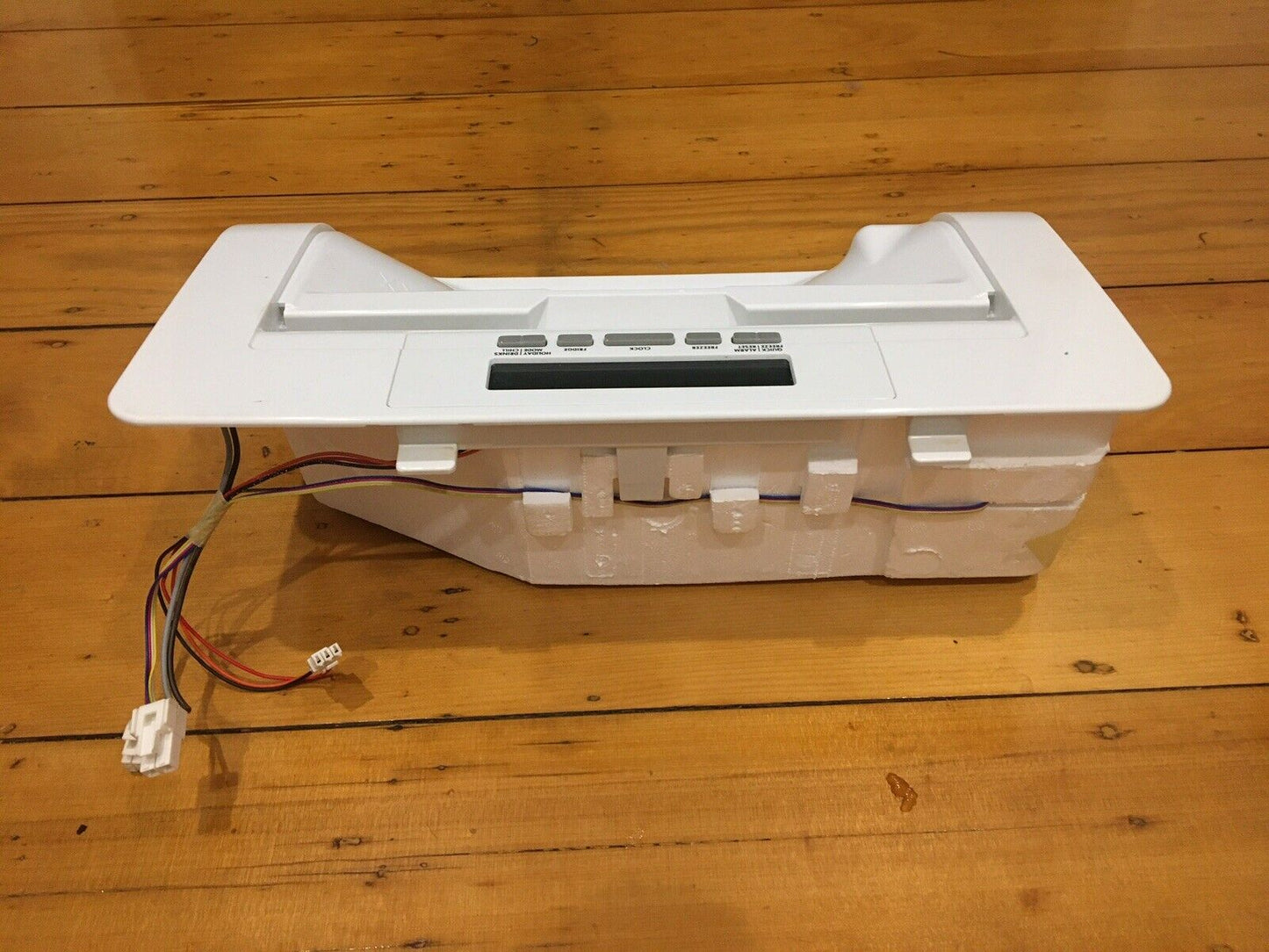

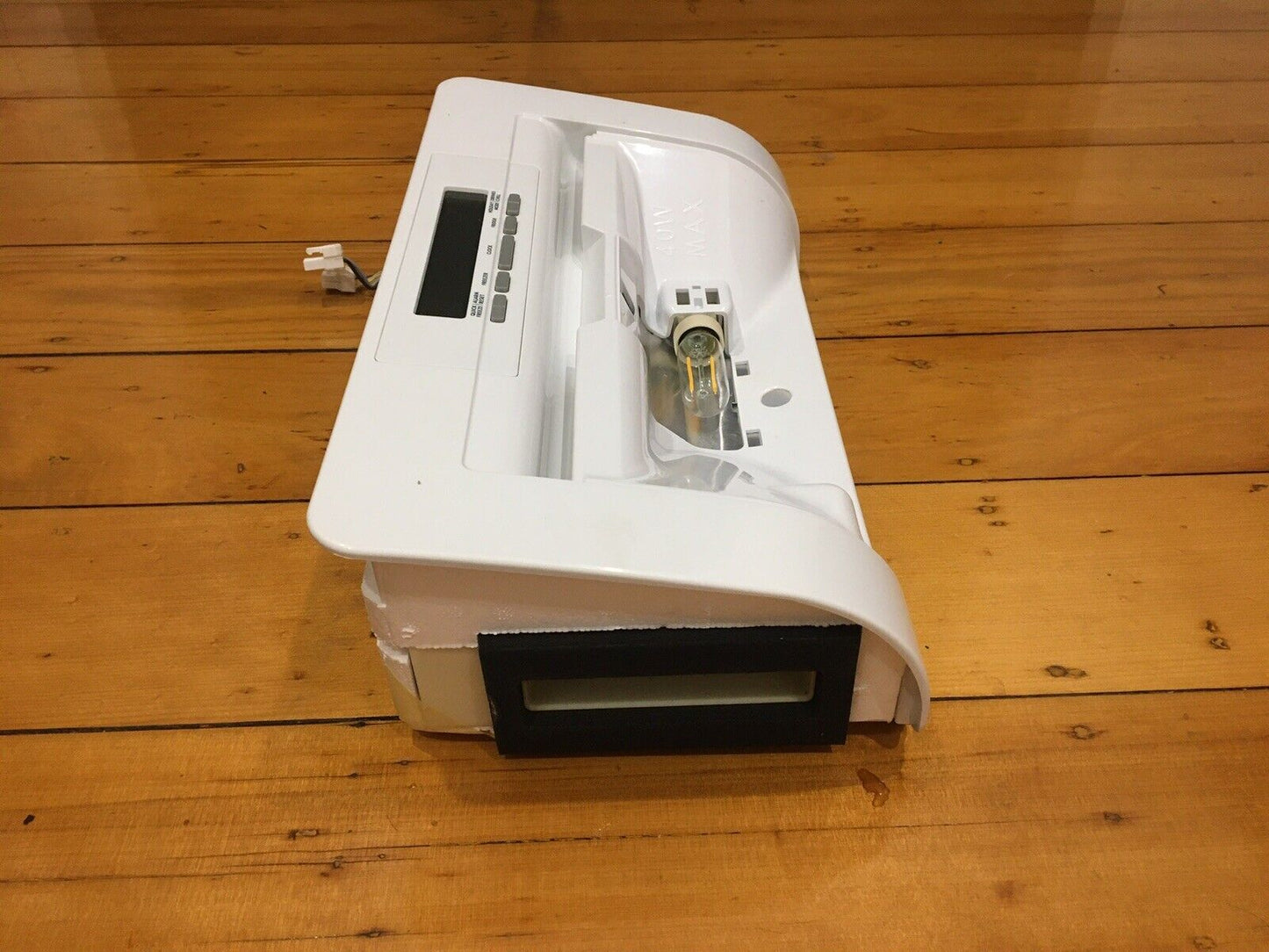

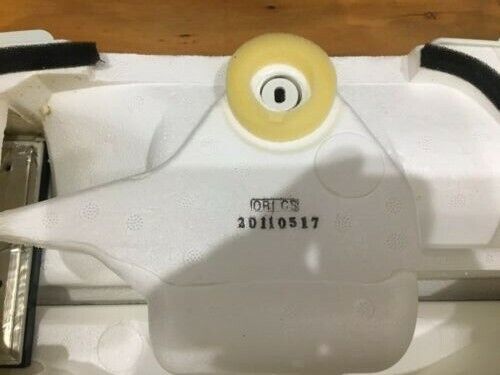

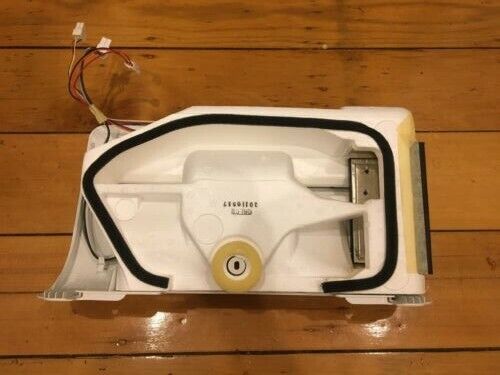

The assembly panel at the top of the fridge side containing the digital display, baffle and light bulb!

Components

• Control housing

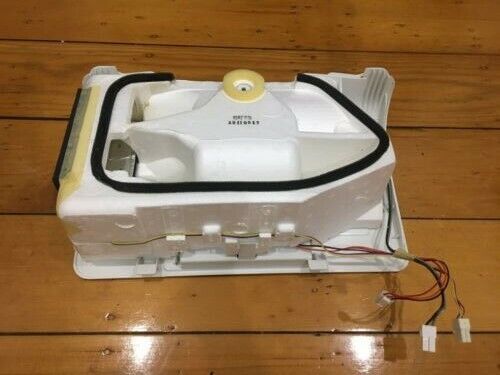

• Control housing EPS / polystyrene
• Control Housing Gasket CSS

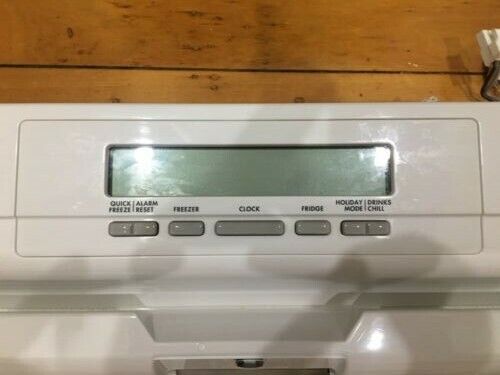

• Digital display

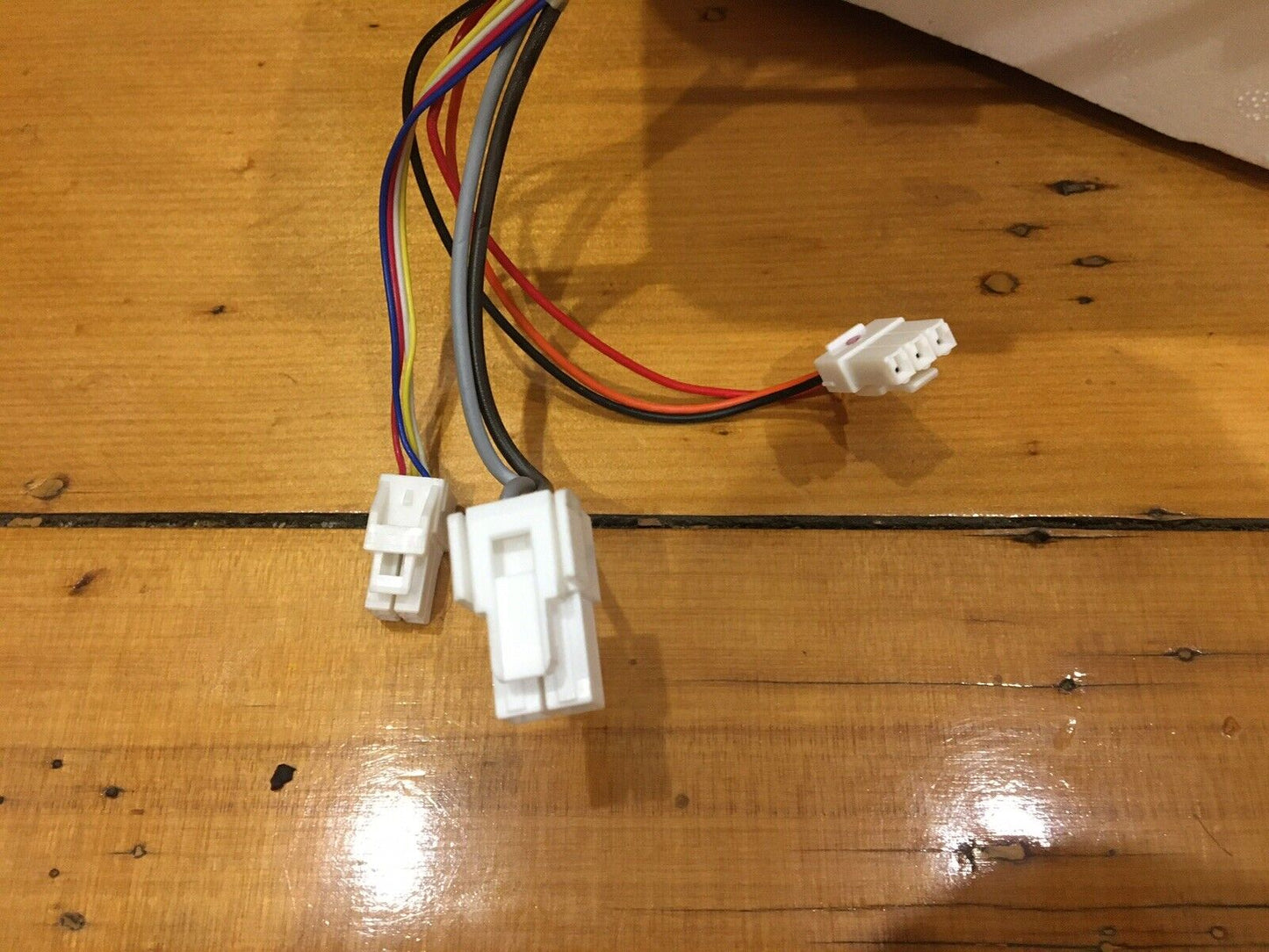

• Electronic Display Harness

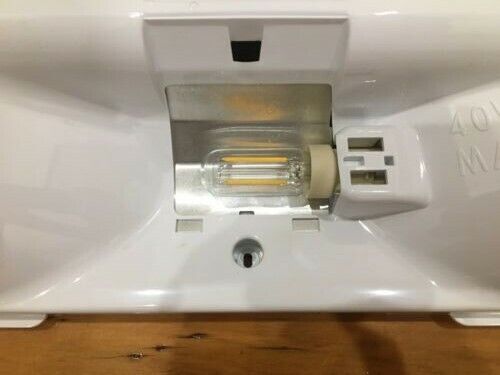

• Lampholder & Harness assy
• Light Shield
• Motorised Baffle FBZA-1750
• Light bulb
• Light bulb cover

Key Details
Width: 40cm
Height: 23cm
Depth: 13cm
Colour: White
Material: ABS Plastic

Westinghouse MPN / Part Number(s)

FULL ASSEMBLY

• 811658501 (Westinghouse)
• 1779486 (Big Warehouse Spares)

CONTROL HOUSING REAR ASSY - without display

• 1454697 (Westinghouse v1)
• 1454698 (Westinghouse v2)
• 1894961 (Big Spares Warehouse)
• W0147473 (Wholesale Appliance Supplies)

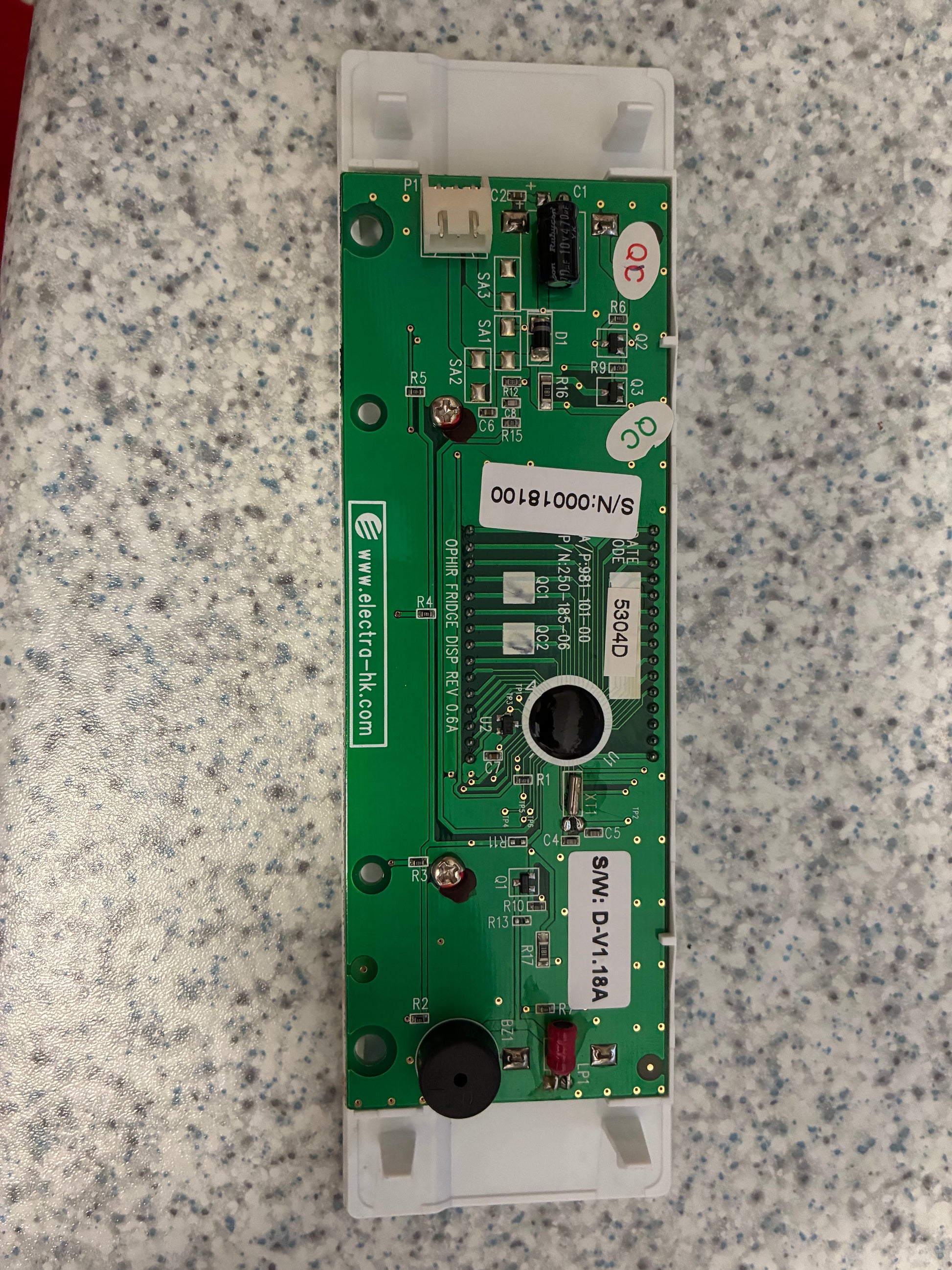

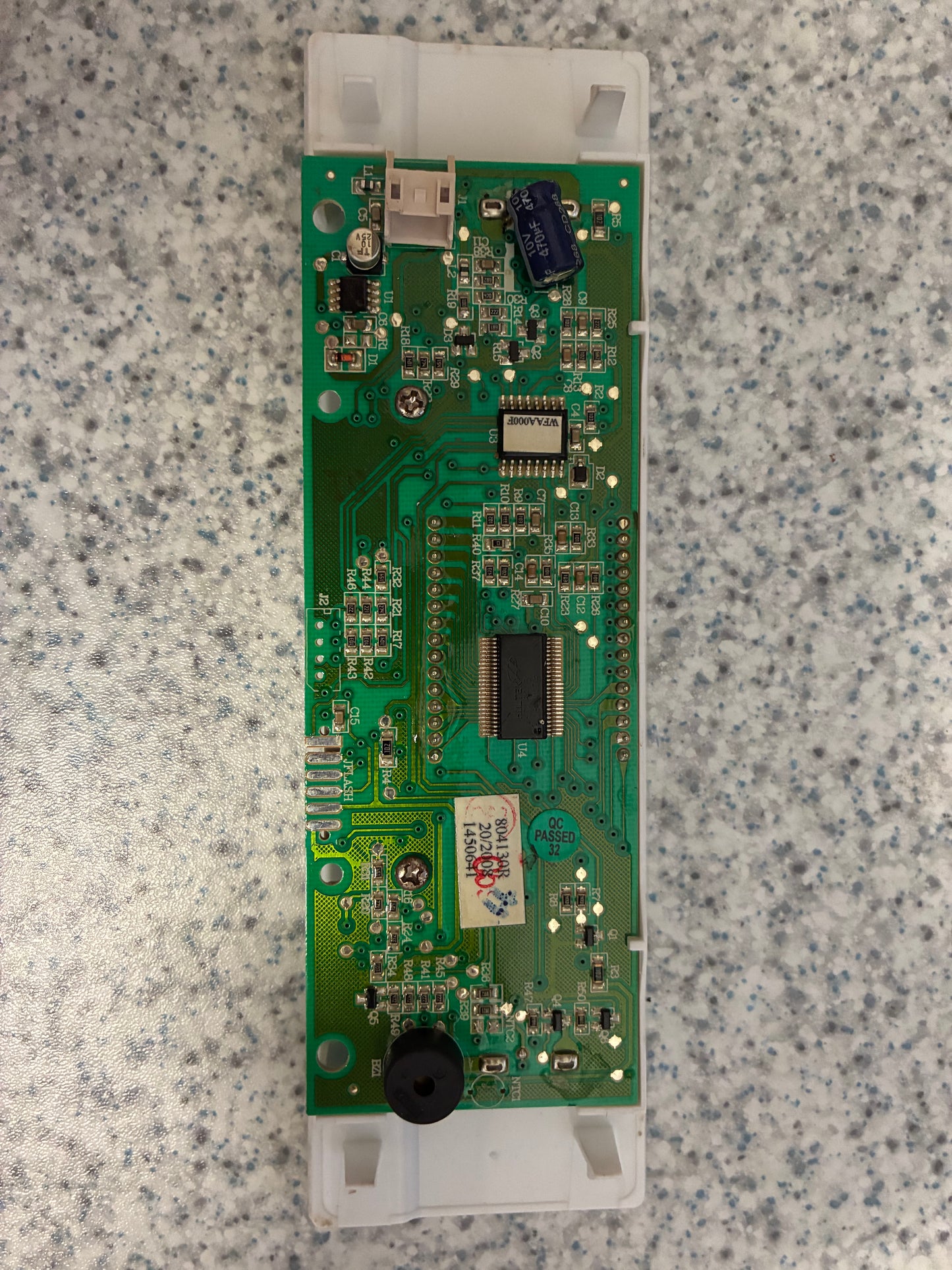

DIGITAL DISPLAY ASSY

• 1450974 (Westinghouse)
• 1779485 (Big Warehouse Spares)
• W0087674 (Wholesale Appliance Supplies)


DIGITAL DISPLAY - OLD STYLE

• 1448796 (Westinghouse v1)

• 1454698 (Westinghouse v2)
• 1596188 (Big Warehouse Spares v1)
• 1597894 (Big Warehouse Spares v2)

DIGITAL DISPLAY - NEW STYLE

• 1450641 (Westinghouse v1)
• 1446218 (Westinghouse v2)
• 1598846 (Big Warehouse Spares v1)

CONTROL HOUSING - front plastic

• 1445842 (Westinghouse)

CONTROL HOUSING - rear polystyrene

• 1445841 (Westinghouse)

MOTORISED BAFFLE FBZA-1750

• 1443632 (Westinghouse)

LIGHT BULB

• 1443629 (Westinghouse)

LIGHT COVER

• 1445840 (Westinghouse)

TBC

• W0086575 (Wholesale Appliance Supplies - facia display)
• W0018218 (Wholesale Appliance Supplies - display assy)

SUBSIDIARY PARTS

• 1446218 (Electronics Display Assy)
• 1445845 (Display Facia)
• 1446220 (Control Housing Gasket CSS)

• 1444192 (Light Shield)
• 1442657 (Lampholder & Harness assy)
• 1446957 (Electronic Display Harness)
• 1438720 (single sided gasket)
• 1419702 (PolyUrethane Tape 9mm x 6mm)


Compatible Models

• WSE6100PA
• WSE6100PA*
• WSE6100PA*1
• WSE6100PA*2
• WSE6100PA*3
• WSE6100PA*4
• WSE6100PA*5
• WSE6100PA*6
• WSE6100PA*7
• WSE6100PA*8
• WSE6100PA*9


• WSE6100PB
• WSE6100PB*
• WSE6100PB*1
• WSE6100PB*2
• WSE6100PB*3
• WSE6100PB*4
• WSE6100PB*5
• WSE6100PB*6
• WSE6100PB*7
• WSE6100PB*8
• WSE6100PB*9


• WSE6100PE
• WSE6100PF


• WSE6100SA
• WSE6100SA*
• WSE6100SA*1
• WSE6100SA*2
• WSE6100SA*3
• WSE6100SA*4
• WSE6100SA*5
• WSE6100SA*6
• WSE6100SA*7
• WSE6100SA*8
• WSE6100SA*9


• WSE6100SB
• WSE6100SB*
• WSE6100SB*1
• WSE6100SB*2
• WSE6100SB*3
• WSE6100SB*4
• WSE6100SB*5
• WSE6100SB*6
• WSE6100SB*7
• WSE6100SB*8
• WSE6100SB*9


• WSE6100SE
• WSE6100SF


• WSE6100WA
• WSE6100WA*
• WSE6100WA*1
• WSE6100WA*2
• WSE6100WA*3
• WSE6100WA*4
• WSE6100WA*5
• WSE6100WA*6
• WSE6100WA*7
• WSE6100WA*8
• WSE6100WA*9


• WSE6100WB
• WSE6100WB*
• WSE6100WB*1
• WSE6100WB*2
• WSE6100WB*3
• WSE6100WB*4
• WSE6100WB*5
• WSE6100WB*6
• WSE6100WB*7
• WSE6100WB*8
• WSE6100WB*9


• WSE6100WE
• WSE6100WF
